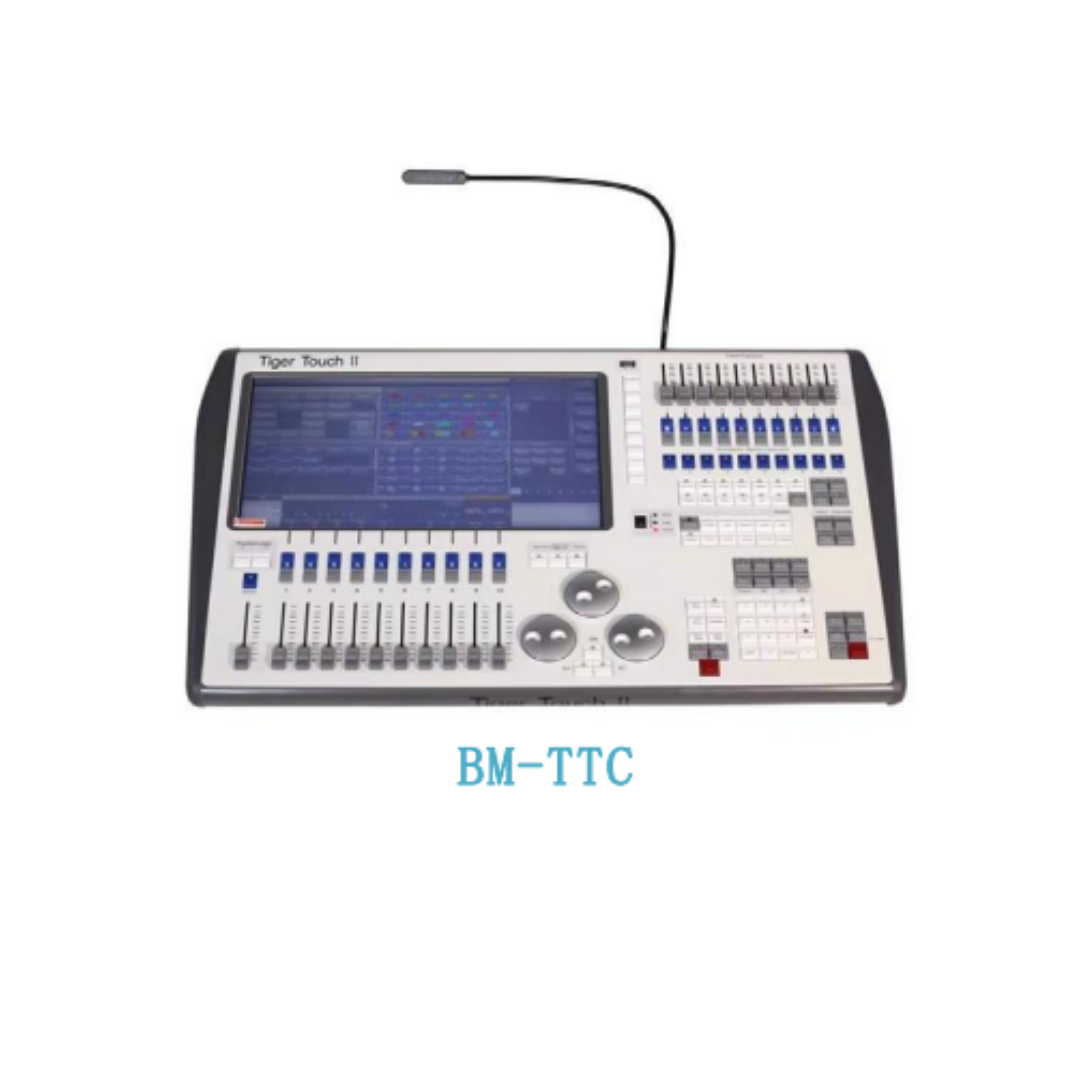

Tiger touch screen console
- Input voltage: 110V~220V 50~60HzUse powerful Titan operating system; Core Duo processor, 60GB solid state drive, 2GBmemory;Support Chinese menu display, built-in multi-language; Built-in 15.4-inch high-resolution wide-screen touch screen imported from South Korea, support networking to computer equipment to control various lighting 3D visualization software; Support Art-Net network function, can be expanded to 12 DMX output lines (domains), 6144 channels;10 macro function buttons, allowing you to operate the console faster;20 playback faders, support more than 1000 program playback; Powerful attribute control window, CMY\RGB colour picker system; The console itself has 2048 DMX-512 channel outputs, and a 4-port expander (need to be purchased separately), a total of 4096 channel outputs; Support graffiti screen logo function; Fast and easy-to-use graphic generator, and classified built-in graphics are easier to use; Support CIPT protocol, you can directly see the image thumbnails of media clips in the media server on the console; Support Wi-Fi access, wireless control of lights, remote control of lights by mobile devices (iPhone, iPad Touch);Built-in thousands of light libraries, built-in light library editing software, you can edit the light library on the console at any time; Built-in Visualiser linear lighting visualization software, want to pre-program? no problem! Support MIDI time code sound and light synchronization function, you can also play music in the console and send time code to control the light program playback.AC90-270 power input interface with power switch;4 standard DMX-512 interfaces, a total of 2048 channels;2 USB2.0interfaces;MIDI input and output interface; One 25-pin serial port, which can be connected to a printer, etc.;1 Ethernet network interface; 1 gooseneck lamp interface; PS2 keyboard and mouse interface each; One standard colour VGA interface; One reset button; Audio input, output, and microphone interface each;1 Firewire interface; 1 optical fibre interface; One spare USB interface.
Console specifications:
Net weight: 13 KG
Gross weight: 33KG
Packing: flight case
