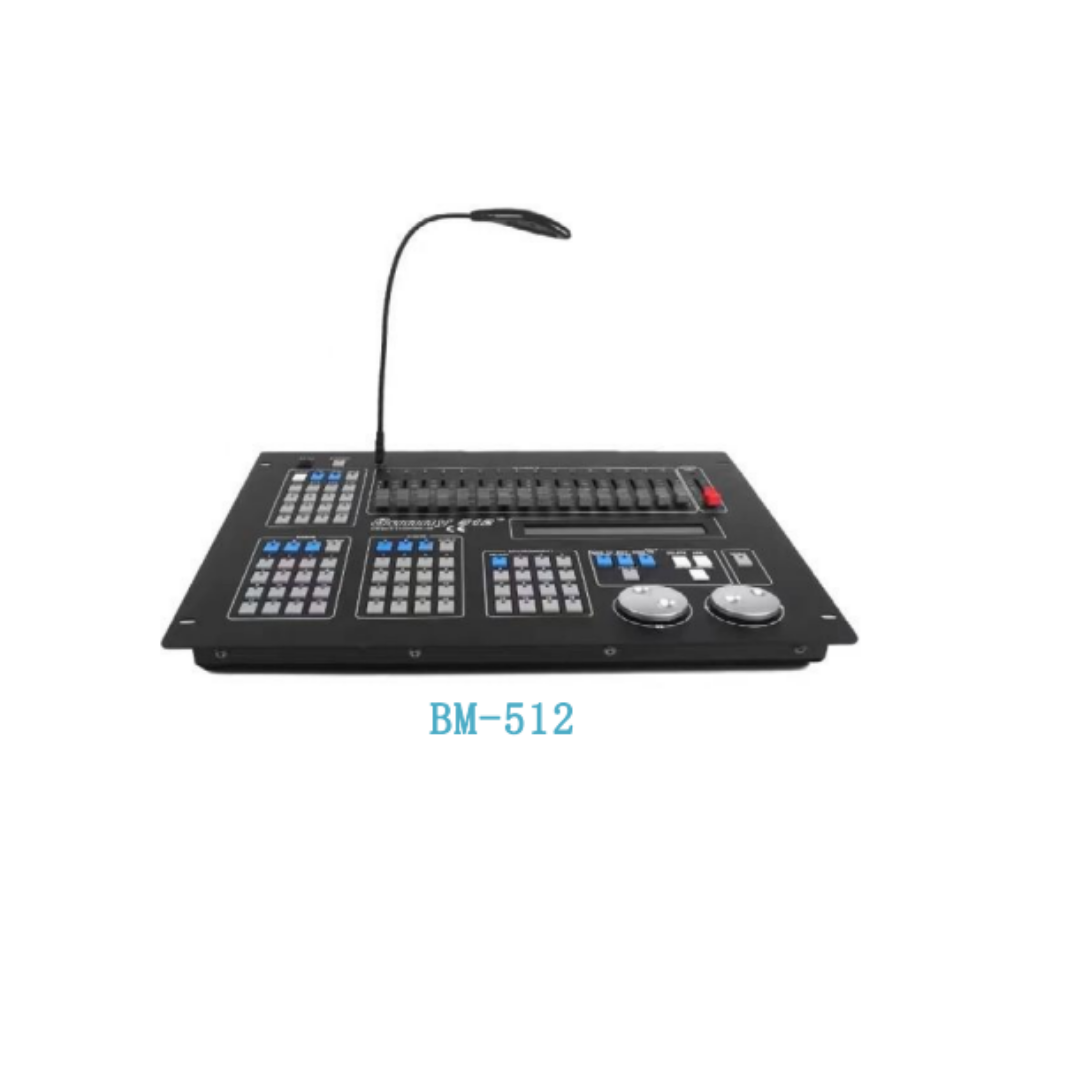

Sunshine 512 Console
- voltage: AC110V～240V, 50/60Hz
- DMX512/1990 standard. 512 DMX control channels.
- Two independent output drive ports with isolation are capable of resisting 2000Vrms electrical shock. Independent plug-in board structure, easy to replace. Can control 32 computer lights with 16 channels Large-screen LCD display with backlight, used to display various operating parameters.16 channel faders, 1 speed control fader. Storage capacity of 1600 chase program steps. 48 chase programs, each program has a maximum of 100 steps. The speed of each step, the gradual change parameter is set independently. Optional music synchronization or manual speed control. With the cooperation of the chase speed fader, the time range of the program step can be from 0.03s-180s 48 scanner scenes that can be called directly. It can run 4 chases and 48 scenes at the same time, and can manually run 32 scanners at the same time (lighting). Manual operation (lighting) has the channel release function. The X/Y of different types of scanners are controlled by the data wheel, and can also be controlled by the faders. 16Bit computer light X/Y control accuracy. 15 environment keys, quickly call different scenes, chases, and manual operation combinations. The music trigger signal source can be taken from the audio line input or the built-in microphone to pick up the sound. It is easy to learn and use, and the operation efficiency is higher. Shutdown data retention. The built-in high-performance green switching power supply has extremely low power harmonic distortion and extremely wide voltage application range, which meets the power requirements of the world.
- Size: 48.5×40×10.5cm
- Gross weight: 7kg
